Vacuubrand Diaphragm Pump MD 12 NT VARIO


Vacuubrand Diaphragm Pump MD 12 NT VARIO

These oil-free diaphragm pumps are particularly powerful pumps for the evacuation and pumping of non-aggressive gases. The three-stage design combines particularly high pumping, with excellent ultimate vacuum of up to 2 mbar, and up to 1.5 mbar with the VARIO version. It provides precise control and always consists of the pump and the CVC 3000 vacuum control unit with an external indicator head. For use as a booster pump, it has a continuous adaptation of its speed for optimum life. The highly flexible, fabric-reinforced double diaphragm made of FKM provides increased operating life at speed below engine speed.

Like all VACUUBRAND diaphragm pumps, they create an absolutely oil-free and clean vacuum as they operate without non-slip seals. For this reason, leachable dust formation to high vacuum application, which is often found in scroll or piston pumps, is excluded.

Performance features

  • Contamination-free pumping and evacuation
  • High flow rate even in ultimate vacuum
  • VARIO model, easy to operate CVC 3000 vacuum controller with clear text menus, removable
  • VARIO version offers self-regulating vacuum optimization throughout the process
  • TURBO MODE, especially in VARIO version with better ultimate vacuum to support turbo pumps
Technical Data Unit MD 12 NT VARIO
Vacuum controller CVC 3000
Number of heads / stages 8/3
Max. pumping speed m3 / h 13.4
Max. pumping speed cfm 7.9
Ultimate vacuum (abs.) mbar / tor 1,5 / 1,1
Ambient temperature range (operation) ° C 10 - 40
Ambient temperature range (storage) ° C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection small flange KF DN 25
Outlet connection Silencer / G1/2"
Nominal engine power kW 0,53
Motor speed range min-1 30 - 2400
Protection class IP 40
Dimensions (L x W x H) mm 554 x 260 x 420
Weight kg 31,2
Noise level at 50 Hz, typ. dBA 50
ATEX conformity (only 230V) II 3/- G IIC T3 X Internal Atm. only
Items supplied Pump completely mounted, ready for use, with manual.
Accessories
  • Stainless steel tubing KF DN 25 (1000 mm: 673337)
  • Hose nozzle DN 15 mm / G1 / 2 "(642472)
  • Small flange KF DN 16 / G1 / 2" (672101)
  • Vent valve VB M-B (674217)

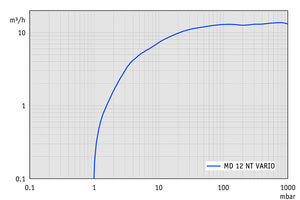

MD 12 NT VARIO - Pump speed graph

MD 12 NT VARIO - Pump speed graph

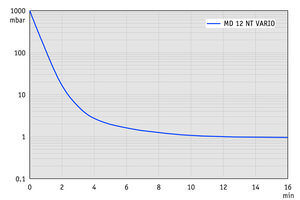

MD 12 NT VARIO - Pump down graph (100 l volume)

MD 12 NT VARIO - Pump down graph (100 l volume)

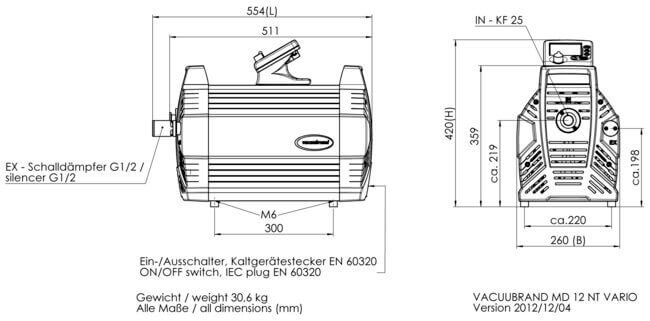

MD 12 NT VARIO - Size sheet

MD 12 NT VARIO - Size sheet
