The oil-free dry compression MD 12 NT diaphragm pump is a particularly powerful pump for the evacuation and transport of non-aggressive gases. The three-stage design of the eight-cylinder pump allows an especially advantageous combination of high pumping speed with a very good final vacuum.

Materials using aluminum and selected plastics (such as diaphragms and valves made of FKM) have a wide range of applications. A very long membrane life is achieved thanks to the highly flexible FKM double membranes with fabric reinforcement. Eight-cylinder NT pumps are characterized by high smoothness and smooth, easy-to-clean surfaces. Like all VACUUBRAND diaphragm pumps, they are not degreased and have no sliding parts on the media side, so they do not wear out completely during normal operation.

Performance features

  • Contamination-free pumping and evacuation
  • High flow rate even near ultimate vacuum
  • whisper quiet
  • Reduced process times
  • Exceptionally long diaphragm life and maintenance-free drive system for low lifetime costs
Technical data Unit MD 12 NT
Number of heads / stages 8/3
Max. pumping speed at 50/60 Hz m3 / h 12.1 / 13.3
Max. pumping speed at 50/60 Hz cfm 7,1 / 7,8
Ultimate vacuum (abs.) mbar / tor 2 / 1.5
Ambient temperature range (operation) ° C 10 - 40
Ambient temperature range (storage) ° C -10 - 60
Max. back pressure (abs.) bar 1.1
Inlet connection small flange KF DN 25
Rated motor power kW 00:44
Rated motor speed at 50/60 Hz min-1 1500/1800
Protection class IP 40
Dimensions (L x W x H) mm 554 x 260 x 359
Weight kg 30.6
Noise level at 50 Hz, typ. dBA 50
ATEX conformity (only 230V) II 3/- G IIC T3 X Internal Atm. only
Items supplied Pump completely mounted, ready for use, with manual.
Accessories
  • Stainless steel tubing KF DN 25 (1000 mm: 20673337)
  • Hose nozzle DN 15 mm / G1/2" (20642472)
  • Small flange KF DN 16 / G1/2" (20672101)

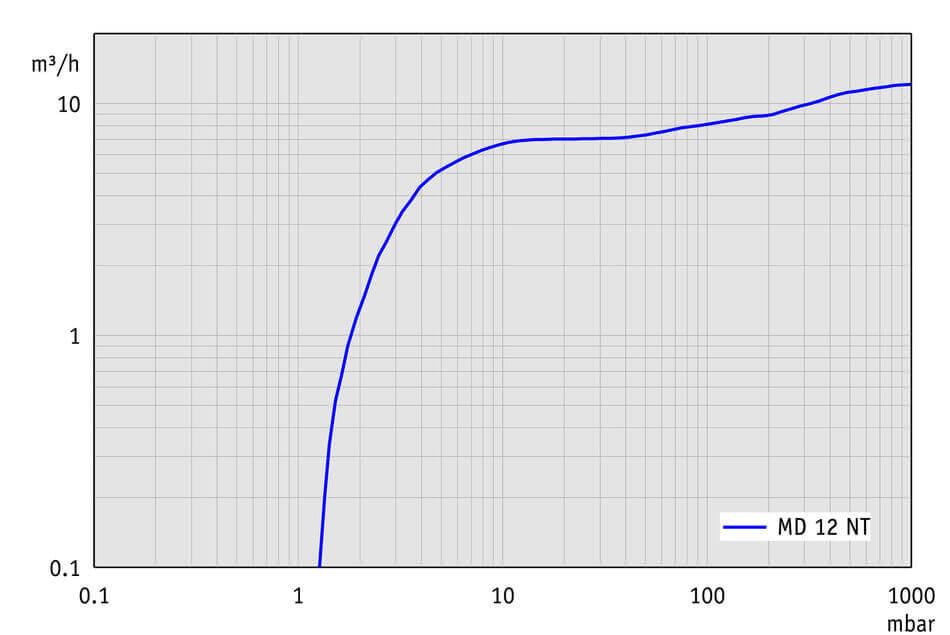

MD 12 NT - Absorption curve at 50 Hz

MD 12 NT - Absorption curve at 50 Hz

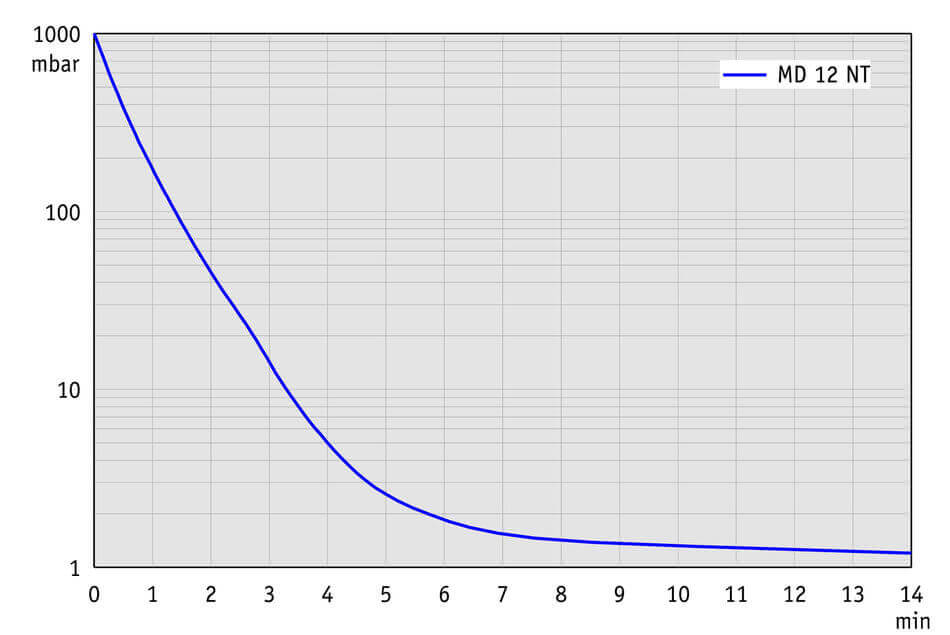

MD 12 NT - Pumping curve at 50 Hz (100 l container)

MD 12 NT - Pumping curve at 50 Hz (100 l container)

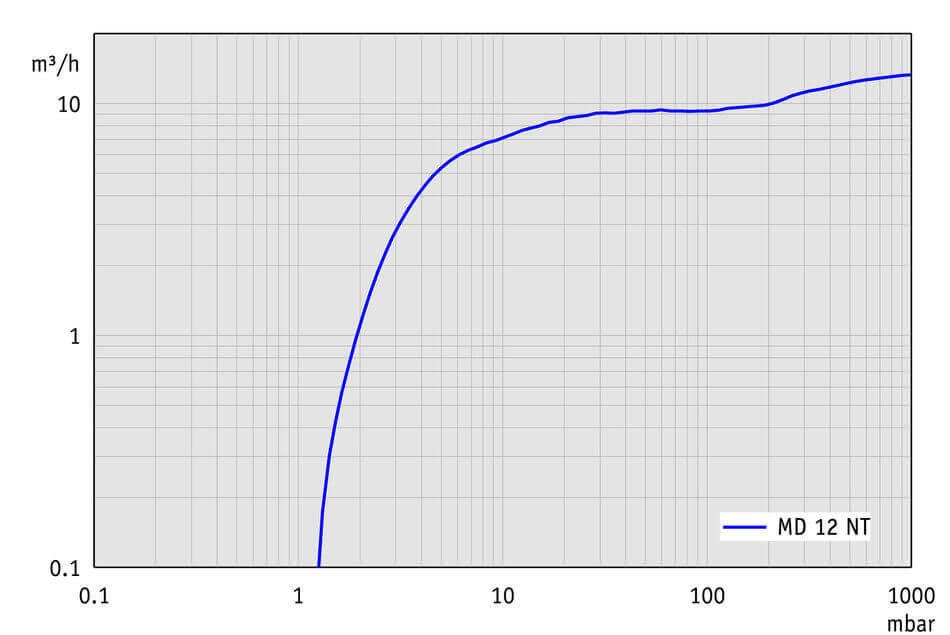

MD 12 NT - Absorption curve at 60 Hz

MD 12 NT - Absorption curve at 60 Hz

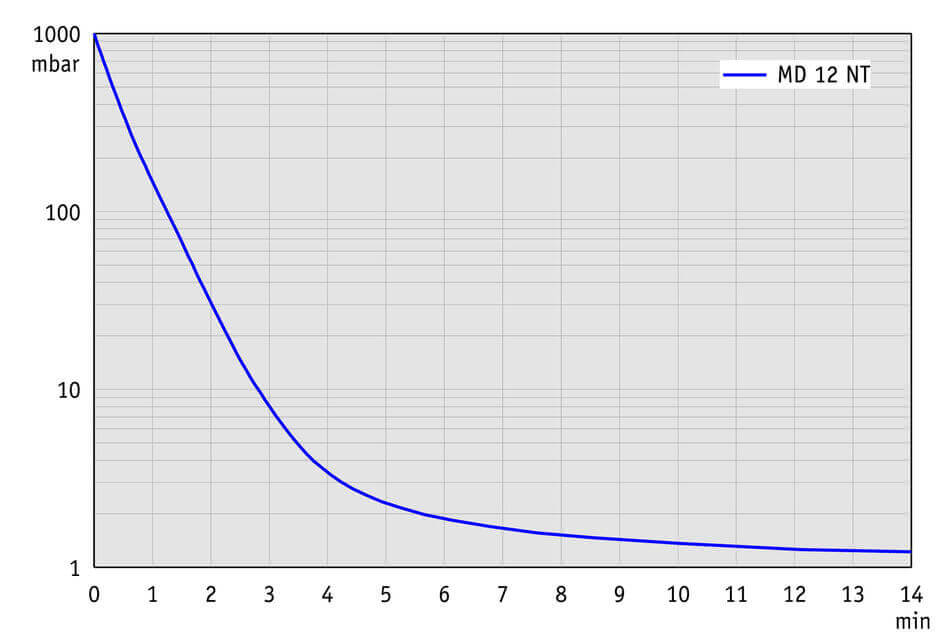

MD 12 NT - Pumping curve at 60 Hz (100 l container)

MD 12 NT - Pumping curve at 60 Hz (100 l container)

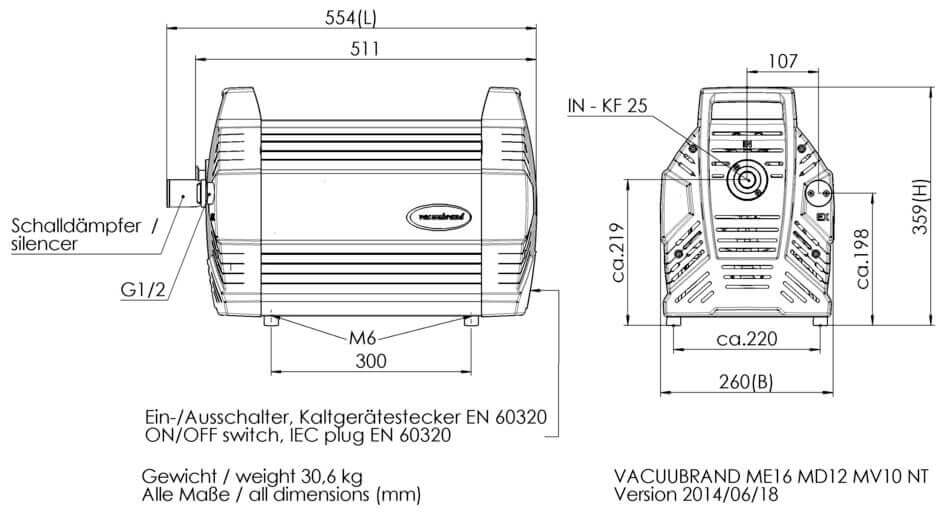

MD 12 NT - Size sheet

MD 12 NT - Size sheet
